Pipe Fittings

Overview

EMG supplies a complete range of butt weld and forged steel pipe fittings perfectly aligned with both our pipe and flange programs and to client-specific requirements. Stock includes seamless and welded butt weld fittings from 1/2 inch to 24 inch OD in multiple wall thicknesses and schedules, plus forged socket weld and threaded fittings from 1/4 inch to 4 inch in pressure classes 3,000, 6,000 and 9,000 lbs. All fittings are produced to the highest technical and dimensional standards including ASME B16.9, B16.11, B16.28 and MSS-SP-75/97, with NORSOK M-650 qualified supply for North Sea and offshore projects.

Every fitting is tested to meet the rigorous demands of upstream, downstream, and high-spec industrial applications — delivering quality, dimensional compatibility, and confidence in every connection.

Typical Applications

• Topside and subsea process pipework
• Refinery and petrochemical fluid handling
• Desalination chloride-rich service
• Power, steam and high-temperature systems
• Manifolds and skid-mounted packages
• Chemical and pharmaceutical processing

Fitting Types We Supply

• Butt weld elbows — 45°, 90°, 180° (LR and SR)
• Concentric and eccentric reducers

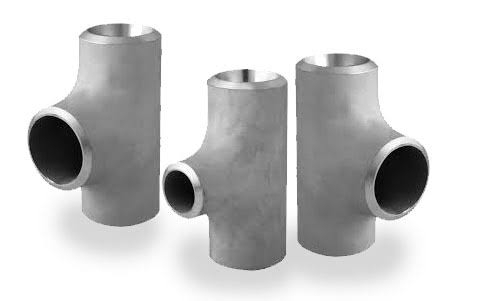

• Equal and reducing tees, crosses and laterals
• Stub ends, end caps and pipe nipples
• Forged socket weld fittings — 3,000 / 6,000 / 9,000 lb
• Forged threaded (NPT) fittings — couplings, plugs, bushings
• Welded outlet fittings (Weldolet®, Sockolet®, Thredolet®)

Common Materials & Grades

Standards & Documentation

• ASME B16.9 — factory-made wrought butt-welding fittings
• ASME B16.11 — forged socket weld and threaded fittings
• ASME B16.28 — short-radius elbows and returns
• MSS SP-43 / SP-75 / SP-97 — wrought, high-yield and integrally reinforced fittings
• NORSOK M-650 qualified supply routes
• EN 10204 3.1 (3.2 on request) Mill Test Reports with heat-number traceability
• Dimensional, hardness, PMI and dye-penetrant testing available
