    Heavy Hex Bolts for Structural & Pressure Equipment

    Heavy hex bolts and complete bolt sets for structural and mechanical applications, manufactured to international standards with full material certification.

    EMG / BOLT DOSSIER

    Heavy hex bolt specifications & dimensions

    A heavy hex bolt uses the heavy head pattern — wider across the flats and taller than a standard hex head on the same thread. The larger head spreads load over more bearing area and develops the full strength of high-strength materials, which is why pressure-equipment and structural specifications call for the heavy series.

    Fig. 1 · Heavy hex boltASME B18.2.1
    HGELTFRSIDE VIEWEND VIEW
    Schematic, not to scale. Letters match the ASME B18.2.1 dimension table below.
    Head pattern
    Heavy hex, ASME B18.2.1
    Imperial range
    1/4" – 6"
    Metric range
    M5 – M150
    Threads
    UNC · UNF · 8UN · ISO metric
    Certification
    EN 10204 3.1 · 3.2 on request
    Supply
    Buy-to-order, quoted lead time
    01 · DIMENSIONS

    Heavy hex bolt dimensions (inch) — ASME B18.2.1

    E = body diameter · F = width across flats · G = width across corners · H = head height · R = fillet radius · LT = nominal thread length · TPI = coarse thread series.

    Heavy hex bolt dimensions (inch) — ASME B18.2.1
    SizeTPIE body dia.F across flatsG across cornersH head heightR filletLT thread length
    MaxMinBasicMaxMinMaxMinBasicMaxMinMaxMin≤ 6"> 6"
    3/8"160.3880.36011/160.6880.6690.7940.7631/40.2680.2260.030.011.0001.250
    1/2"130.5150.4827/80.8750.8501.0100.96911/320.3640.3020.030.011.2501.500
    5/8"110.6420.6051-1/161.0621.0311.2271.17527/640.4440.3780.060.021.5001.750
    3/4"100.7680.7291-1/41.2501.2121.4431.3831/20.5240.4550.060.021.7502.000
    7/8"90.8950.8521-7/161.4381.3941.6601.58937/640.6040.5310.060.022.0002.250
    1"81.0220.9761-5/81.6251.5751.8761.79643/640.7000.5910.090.032.2502.500
    1-1/8"71.1491.0981-13/161.8121.7562.0932.0023/40.7800.6580.090.032.5002.750
    1-1/4"71.2771.22322.0001.9382.3092.20927/320.8760.7490.090.032.7503.000
    1-3/8"61.4041.3452-3/162.1882.1192.5262.41629/320.9400.8100.090.033.0003.250
    1-1/2"61.5311.4702-3/82.3752.3002.7422.62211.0360.9020.090.033.2503.500
    1-5/8"8 UN1.6581.5912-9/162.5622.4812.9592.8291-3/321.1160.9780.090.033.5003.750
    1-3/4"51.7851.7162-3/42.7502.6623.1753.0351-5/321.1961.0540.120.043.7504.000
    1-7/8"8 UN1.9121.8392-15/162.9382.8443.3923.2421-1/41.2761.1300.120.044.0004.250
    2"4.52.0391.9643-1/83.1253.0253.6083.4491-11/321.3881.1750.120.044.2504.500
    2-1/4"4.52.3052.2143-1/23.5003.3884.0413.8621-1/21.5481.3270.190.064.7505.000
    2-1/2"42.5592.4613-7/83.8753.7504.4744.2751-21/321.7081.4790.190.065.2505.500
    2-3/4"42.8272.7114-1/44.2504.1124.9074.6881-13/161.8691.6320.190.065.7506.000
    3"43.0812.9614-5/84.6254.4755.3405.10222.0601.8150.190.066.2506.500

    All dimensions in inches. Sizes from 1/4" and up to 6", and metric M5 to M150 (ISO 4014/4017, EN 14399-4, AS/NZS 1252), are quoted to your drawing or specification. Reference only — your purchase order and the governing standard edition take precedence.

    02 · STANDARDS

    Governing standards

    ASME B18.2.1

    Inch heavy hex bolt head dimensions and tolerances

    ASME B1.1

    Unified inch screw threads (UNC, UNF, 8UN)

    ISO 4014 / ISO 4017

    Metric hex bolts, partial and full thread

    EN 14399-4 (HV)

    Metric high-strength structural assemblies

    AS/NZS 1252

    Australian high-strength structural bolting

    ASTM A193 / A320 / A453

    Pressure, low- and high-temperature bolting grades

    ASTM F3125 (A325 / A490)

    Inch structural bolts

    EN 10204

    3.1 inspection certificate as standard, 3.2 on request

    03 · BOLT VS SCREW

    Heavy hex bolts vs heavy hex screws

    The bolt has a plain bearing face and wider tolerances for use with a nut; the heavy hex screw adds a washer face and closer tolerances. Flange and structural work almost always means the bolt.

    04 · OTHER NAMES

    Also known as

    • — Heavy hexagon bolts
    • — Heavy pattern bolts
    • — Heavy hex machine bolts
    • — Heavy hex structural bolts

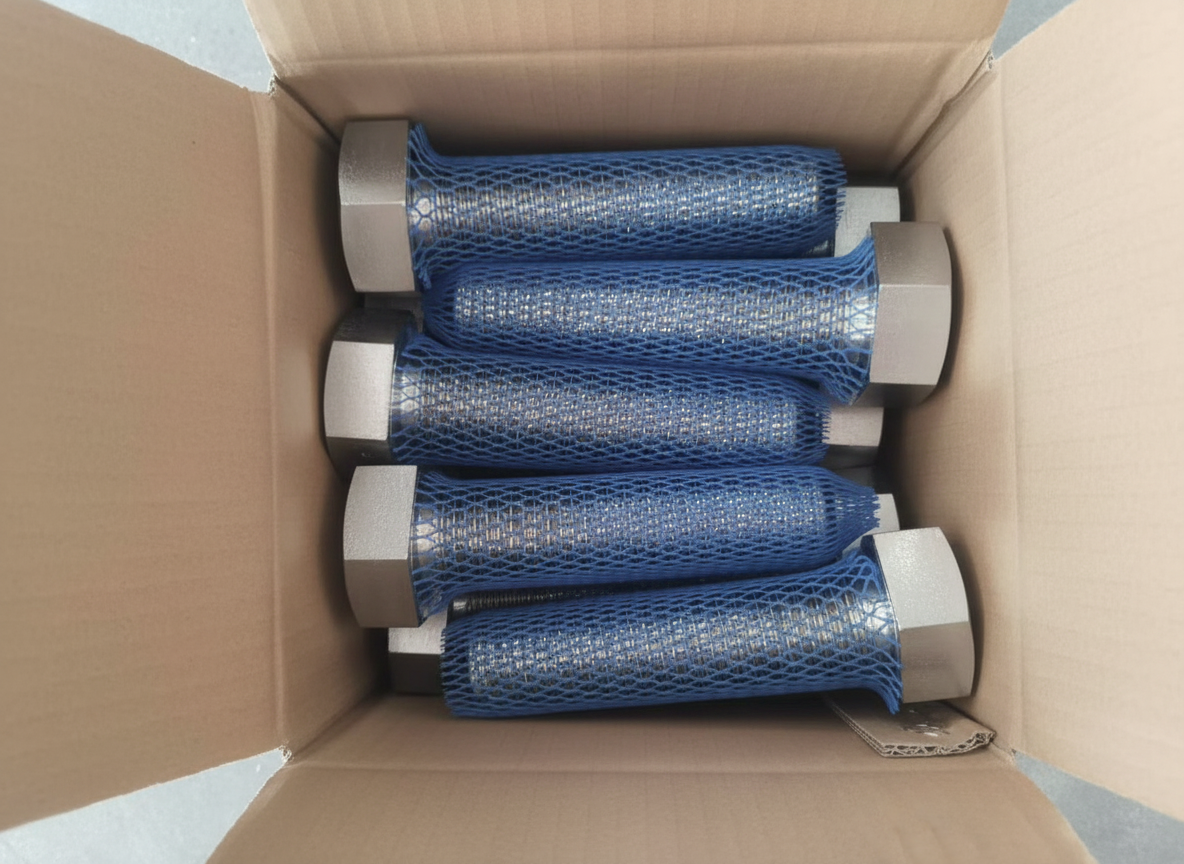

    Hex bolts and bolt sets for structural and mechanical assemblies
    Heavy hex bolts with matching nuts and washers
    EN 10204 3.1 Certified
    ISO 9001 Quality

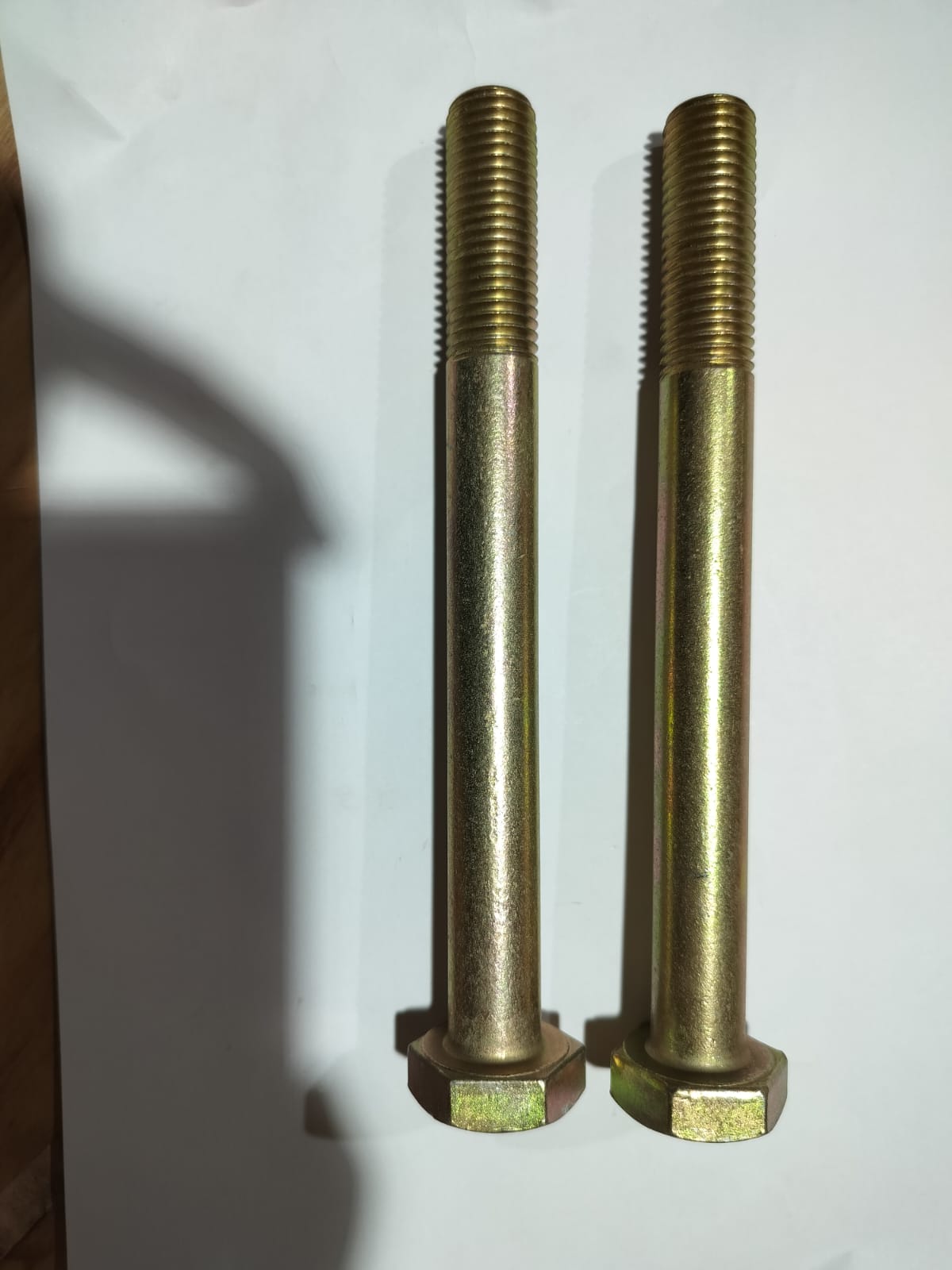

    Zinc yellow trivalent coated heavy hex bolts with rolled threads
    Zinc yellow trivalent coated heavy hex bolts supplied with coating and mill certification
    OVERVIEW

    Overview

    Our heavy hex bolt range covers structural bolting for steel connections through to mechanical grade fasteners for equipment assembly. We supply hex bolts in partial and full thread configurations, complete with matching nuts and washers where required. All bolts are manufactured to ASTM, ISO, or DIN specifications and supplied with full EN 10204 3.1 material certification, ensuring traceability for safety-critical applications.

    EMG supplies hex bolts in over 50+ material grades — from ASTM A325 structural to Inconel 718 — with dimensional inspection to ASME B18.2.1 and full EN 10204 3.1 material certification.

    WHERE THEY ARE SPECIFIED

    Typical Applications

    01Structural steel connections in buildings and bridges
    02Heavy machinery and equipment mounting
    03Pipe rack and support structure assembly
    04Offshore platform structural joints
    05Industrial equipment frames and bases
    06Crane and lifting equipment connections
    SUPPLY SCOPE

    Fastener Types We Supply

    Heavy hex bolts to ASTM A325 / A490 for structural applications
    Hex head cap screws to ASTM A449 for mechanical assemblies
    ISO 4014 partial thread hex bolts (metric)
    ISO 4017 full thread hex bolts (metric)
    DIN 931 / DIN 933 hex bolts for European specifications
    MATERIAL RANGE

    Common Materials & Grades

    ASTM A193 B7ASTM A193 B7MASTM A193 B5ASTM A193 B6ASTM A193 B8 / B8MASTM A193 B8TASTM A193 B8CASTM A193 B16ASTM A320 L7 / L7MASTM A320 L43ASTM A453 660 Class A & DASTM A325 Type 1 & 3ASTM A490 Type 1Grade 8.8 / 10.9 / 12.9304 / 316 / 321 StainlessDuplex 2205 (F51)Super Duplex 2507 (F53)Inconel 625 / 718Monel 400 / K-500Incoloy 825
    VERIFICATION

    Standards & Documentation

    EN 10204 3.1 Mill Test Reports with chemical and mechanical properties
    Heat number traceability through production process
    Dimensional inspection to ASME B18.2.1 / ISO 4014/4017
    Hardness testing and proof load verification
    ISO 9001:2015 certified manufacturing

    NEED MACHINED COMPONENTS TOO?

    Spacers, blinds, special nuts, shafts and bushes — supplied to your drawing with the same traceability as your bolting. Precision Machined Components →

    FREQUENTLY ASKED QUESTIONS

    Technical FAQs

    What is the difference between ASTM A325 and A490 hex bolts?

    +
    ASTM A325 bolts are medium-carbon steel with a minimum tensile strength of 120 ksi (827 MPa), used for general structural connections. ASTM A490 bolts are alloy or martensite steel with a minimum tensile strength of 150 ksi (1034 MPa), used where higher strength is required. A490 bolts should not be galvanized due to hydrogen embrittlement risk.

    Can you supply hex bolts to both imperial and metric standards?

    +
    Yes. We supply hex bolts to imperial standards (ASTM A325, A490, ASME B18.2.1) and metric standards (ISO 4014, ISO 4017, DIN 931/933). All bolts are supplied with EN 10204 3.1 material certification regardless of dimensional standard.

    Do you supply matching nuts and washers with hex bolt orders?

    +
    Yes. We supply complete bolt sets including matching heavy hex nuts (ASTM A194 or A563) and hardened washers (ASTM F436 or F844). Components are matched by material grade and can be supplied with consolidated certification for complete traceability.

    What hex bolt grades are suitable for high-temperature service?

    +
    For elevated temperature service, ASTM A193 B16 (chrome-moly-vanadium) hex bolts are recommended for sustained temperatures up to 593°C. For temperatures above this, A453 Grade 660 or Inconel 718 hex bolts provide superior creep resistance and bolt load retention.
