    Heavy Hex Nuts & Washers for Flange Bolting

    Heavy hex nuts, washers, and fastener accessories manufactured to ASTM A194 specifications in all grades to complement our bolt and stud range.

    SUPPLIED PARTS

    Stainless bolting, prepared for delivery.

    Stainless steel stud bolts arranged in blue protective mesh sleeves inside a lined carton
    Stainless stud bolts individually protected in mesh sleeves
    Stainless steel heavy hex nuts beside threaded studs in blue protective mesh sleeves
    Heavy hex nuts and stainless studs packed together

    EMG-supplied stainless bolting. Blue mesh is protective packaging, not a coating. The order specification and material certificates confirm the grade and class.

    ACTUAL PROJECT / AUSTRALIAN OIL & GAS

    SAF 2507. One package. A precise requirement.

    A loyal oil and gas client needed SAF 2507 stud bolts, nuts and washers in Australia, with a specified PREN above 40. The requirement covered the whole package—not just the stud.

    See the actual project parts, from heavy hex nuts and washers to the mesh-protected studding, and the material details that matter when specifying a similar order.

    Read the Case Study
    EMG-marked 2507 washers loose in a box from the Australian oil and gas project
    The project's washers complete the requested stud bolt, nut and washer package.

    PREN above 40 was the client's requirement; markings and photographs are not material certificates. Similar supply is buy-to-order, with quoted lead time.

    EMG / FASTENER DOSSIER

    Flat & Hardened Washers: specifications & dimensions

    General-purpose flat washers and ASTM F436 hardened washers are different products. Diameter and thickness alone do not certify hardness or material. ASME PCC-1 is bolted-joint assembly guidance, not a replacement for a washer product specification.

    EMG / FORM REFERENCENOT TO SCALE
    FRONT & EDGE VIEWS
    Form illustration only. The specified standard and approved drawing govern dimensions and tolerances.
    SUPPLY
    Buy-to-order · quoted lead time
    MARKETS
    Australia · Southeast Asia · Asia-Pacific
    ACCEPTANCE
    Specified standard & drawing
    RECORDS
    EN 10204 scope agreed per order
    01 / DIMENSIONAL REFERENCE

    General-purpose flat washers · ASME B18.21.1 reference

    Inches. Published general-purpose unhardened washer dimensions. Listed thickness is a reference value, not a min–max tolerance. These rows do not establish ASTM F436 compliance.

    General-purpose flat washers · ASME B18.21.1 reference. Inches. Published general-purpose unhardened washer dimensions. Listed thickness is a reference value, not a min–max tolerance. These rows do not establish ASTM F436 compliance.
    Bolt sizeInside dia.Outside dia.Listed thickness
    1/29/161-3/80.109
    5/811/161-3/40.134
    3/413/1620.148
    7/815/162-1/40.165
    11-1/162-1/20.165
    1-1/81-1/42-3/40.165
    1-1/41-3/830.165
    1-3/81-1/23-1/40.180
    1-1/21-5/83-1/20.180
    1-5/81-3/43-3/40.180
    1-3/41-7/840.180
    1-7/824-1/40.180
    22-1/84-1/20.180
    2-1/42-3/84-3/40.220
    2-1/22-5/850.238
    2-3/42-7/85-1/40.259
    33-1/85-1/20.284

    ASTM F436 round washers · standard-thickness reference

    Inches. Standard-thickness hardened round washer series; ID/OD are published listed values. Extra-thick and bevelled forms are separate products.

    ASTM F436 round washers · standard-thickness reference. Inches. Standard-thickness hardened round washer series; ID/OD are published listed values. Extra-thick and bevelled forms are separate products.
    Bolt sizeInside dia. listedOutside dia. listedThickness min–max
    1/217/321-1/160.097–0.177
    5/811/161-5/160.122–0.177
    3/413/161-15/320.122–0.177
    7/815/161-3/40.136–0.177
    11-1/1620.136–0.177
    1-1/81-3/162-1/40.136–0.177
    1-1/41-3/82-1/20.136–0.177
    1-3/81-1/22-3/40.136–0.177
    1-1/21-5/830.136–0.177
    1-5/81-3/43-1/40.178–0.28
    1-3/41-7/83-3/80.178–0.28
    1-7/823-1/20.178–0.28
    22-1/83-3/40.178–0.28
    2-1/42-3/840.24–0.34
    2-1/22-5/84-1/20.24–0.34
    2-3/42-7/850.24–0.34
    33-1/85-1/20.24–0.34
    3-1/43-3/860.24–0.34
    3-1/23-5/86-1/20.24–0.34
    3-3/43-7/870.24–0.34
    44-1/87-1/20.24–0.34
    02 / SPECIFICATION MAP

    ASME B18.21.1 / ASTM F844

    General-purpose inch washer geometry and unhardened steel requirements as ordered.

    ASTM F436

    Hardened washer requirements, dimensions and applicable types.

    ISO 7089 / ISO 7090

    Metric normal-series plain washer geometry; no inch conversion implied.

    ASME PCC-1

    Joint assembly guidance; washer material and dimensions remain drawing-controlled.

    03 / ENGINEERING NOTES
    01

    Do not substitute flat for hardened

    A commercial flat washer is not equivalent to an F436 washer. Bearing dimensions, hardness, material and coating must all meet the specified assembly.

    02

    Alloy washers

    Duplex and nickel-alloy washers are quoted against their own drawing and material specification, not automatically represented as F436 steel products.

    REFERENCE BASIS

    Selected reference sizes, not a complete tolerance schedule or a stock list. Confirm the current standard edition, material condition and drawing before manufacture or installation.

    EMG S32205-marked hex nuts showing thread openings and blue inserts
    EMG S32205-marked nuts — thread and finish detail
    EN 10204 3.1 Certified
    ISO 9001 Quality
    EMG flat washers marked S32205 in project packaging
    EMG S32205-marked flat washers in protective packaging
    OVERVIEW

    Overview

    Our nuts and washers complement the full range of stud bolts and hex bolts, ensuring matched material grades and specifications for complete bolted assemblies. We supply heavy hex nuts to ASTM A194 in all standard grades, along with hardened washers, spring washers, and specialty washer types. All components are supplied with EN 10204 3.1 certification and can be matched to specific bolt batches for full assembly traceability.

    EMG supplies ASTM A194 heavy hex nuts in 50+ material grades — including 2H, 8M, and exotic alloys like Inconel 625 and Hastelloy C-276 — all matched by heat number to companion bolts.

    WHERE THEY ARE SPECIFIED

    Typical Applications

    01Companion nuts for ASTM A193 stud bolts
    02Flange joint assemblies in pressure piping
    03Structural steel connections requiring matched fasteners
    04Pressure vessel and heat exchanger closures
    05High-temperature service in power generation
    06Corrosive environment applications requiring exotic alloys
    SUPPLY SCOPE

    Fastener Types We Supply

    Heavy hex nuts to ASTM A194 (2H, 2HM, 4, 7, 8, 8M grades)
    Finished hex nuts to ASTM A563
    Hardened flat washers to ASTM F436
    Through-hardened washers for high-strength bolting
    Spring lock washers and wedge-locking washer pairs for vibration-critical joints
    Custom nuts and washers to project specifications
    MATERIAL RANGE

    Common Materials & Grades

    ASTM A194 2HASTM A194 2HMASTM A194 3ASTM A194 4ASTM A194 6ASTM A194 7ASTM A194 7MASTM A194 8ASTM A194 8MASTM A194 8CASTM A194 8TASTM A194 8MLCuNASTM A194 43Duplex 2205Super Duplex 2507Inconel 625Monel 400Hastelloy C-276
    VERIFICATION

    Standards & Documentation

    EN 10204 3.1 Mill Test Reports with chemical and mechanical certification
    Heat number traceability matched to companion bolts when required
    Proof load testing per ASTM A194 requirements
    Dimensional inspection to ASME B18.2.2 / ISO 4032
    ISO 9001:2015 certified quality management

    NEED MACHINED COMPONENTS TOO?

    Spacers, blinds, special nuts, shafts and bushes — supplied to your drawing with the same traceability as your bolting. Precision Machined Components →

    FREQUENTLY ASKED QUESTIONS

    Technical FAQs

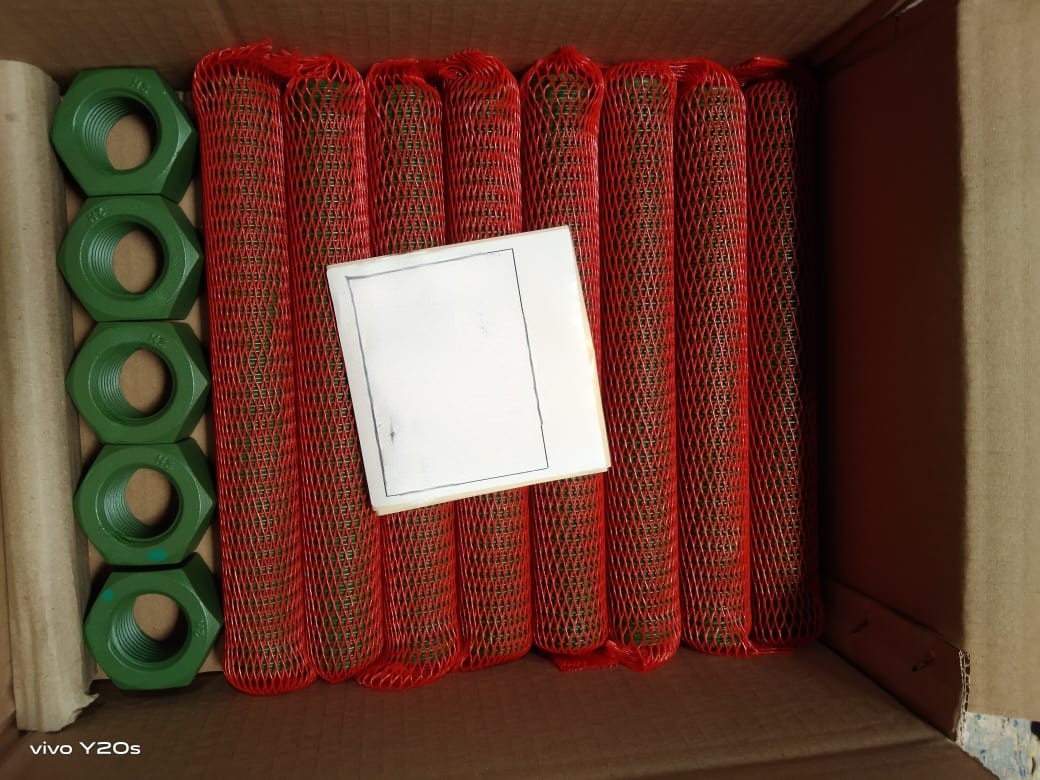

    Which ASTM A194 nut grade pairs with A193 B7 stud bolts?

    +
    ASTM A194 Grade 2H is the standard companion nut for A193 B7 stud bolts. For sour service (NACE MR0175), A194 Grade 2HM is used with A193 B7M studs. For high-temperature service above 450°C, A194 Grade 4 or 7 nuts are specified to match A193 B16 studs.

    What is the difference between ASTM A194 and A563 nuts?

    +
    ASTM A194 nuts are designed for high-pressure and high-temperature service, with mandatory proof load testing and material certification. ASTM A563 nuts are general-purpose nuts for structural and mechanical applications. For safety-critical flanged connections in oil & gas and petrochemical industries, A194 nuts are required.

    Can nuts and washers be heat-number matched to specific bolt batches?

    +
    Yes. We routinely supply nuts and washers heat-number matched to companion bolts for complete assembly traceability. This is standard practice for critical pressure-retaining connections and is documented in consolidated EN 10204 3.1 certificates covering the entire bolting set.

    What nut grades are suitable for cryogenic LNG service?

    +
    For cryogenic service below -46°C, ASTM A194 Grade 4 (carbon-moly) or Grade 7 (AISI 4140) nuts are specified. These grades are Charpy impact tested to demonstrate adequate toughness at low temperatures, making them suitable for LNG plant piping and cryogenic storage systems.
